ori kōbō
ZENSAI 65
ZENSAI 65
Couldn't load pickup availability
Detailed documentation: https://ori-kobo.com/pages/zensai-65-documentation
Additional PCBs/plates can be purchased here: https://ori-kobo.com/products/zensai-65-extra-parts

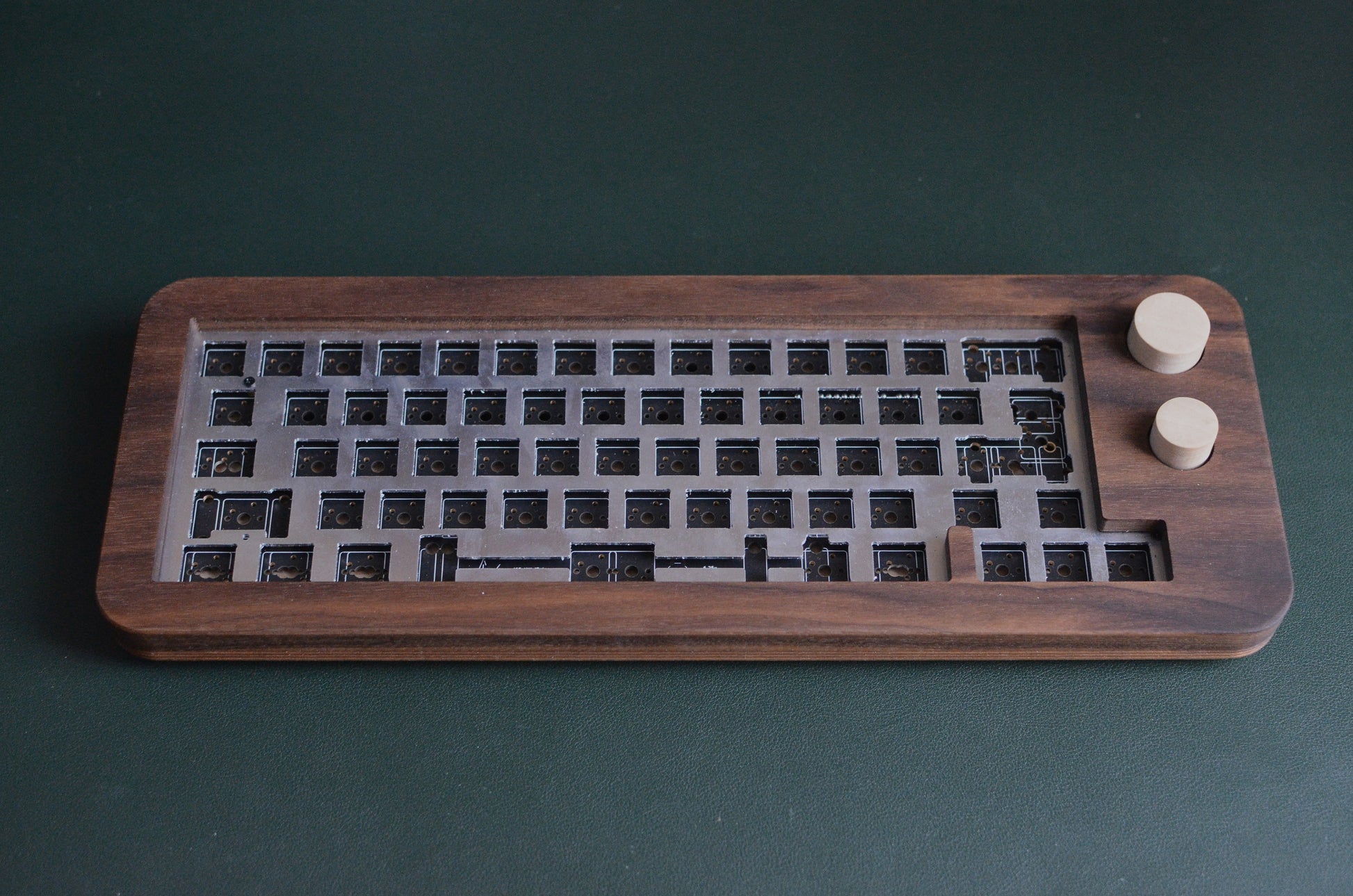

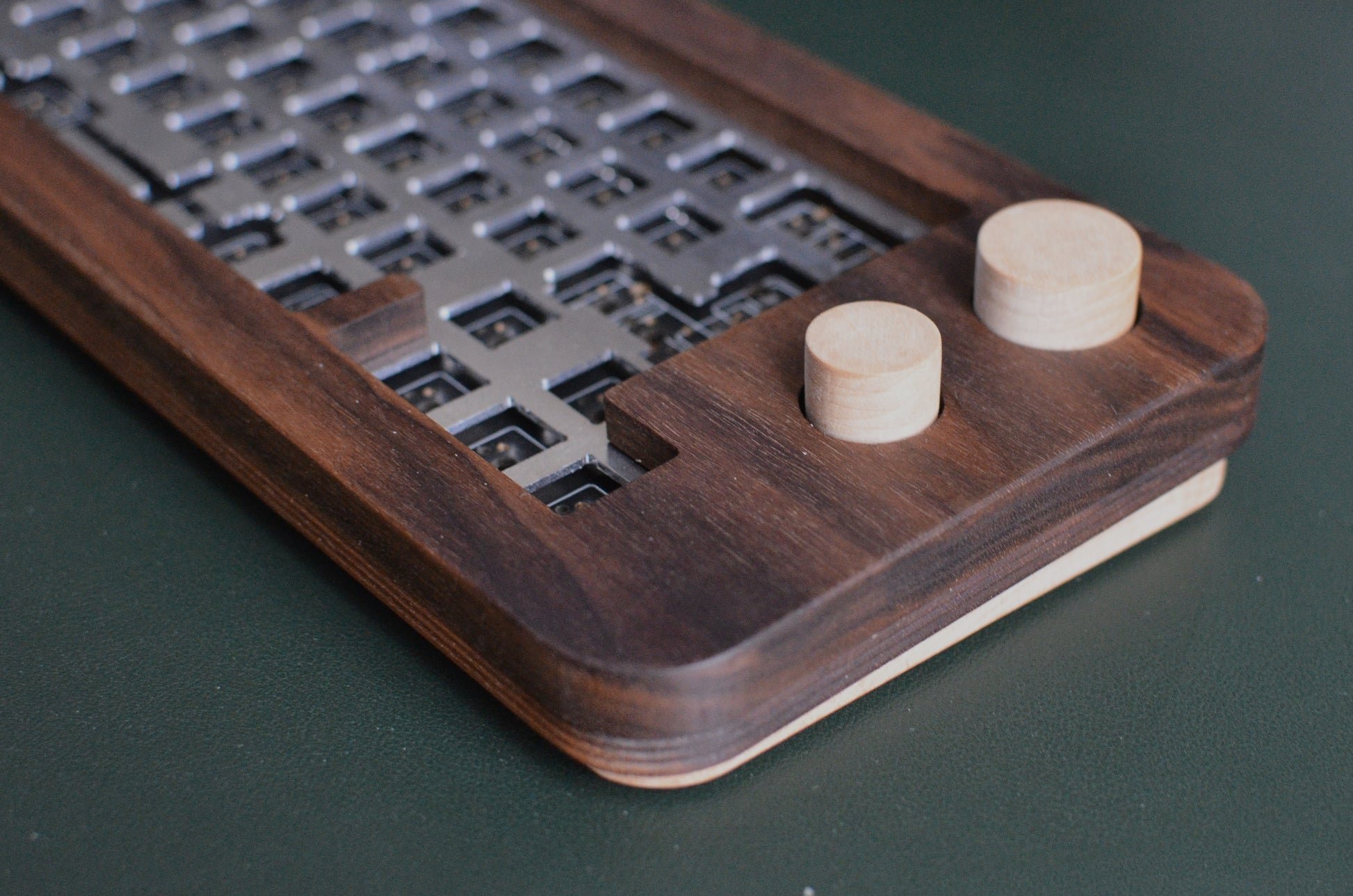

Top-mounted wooden 65% keyboard with 2 rotary encoders

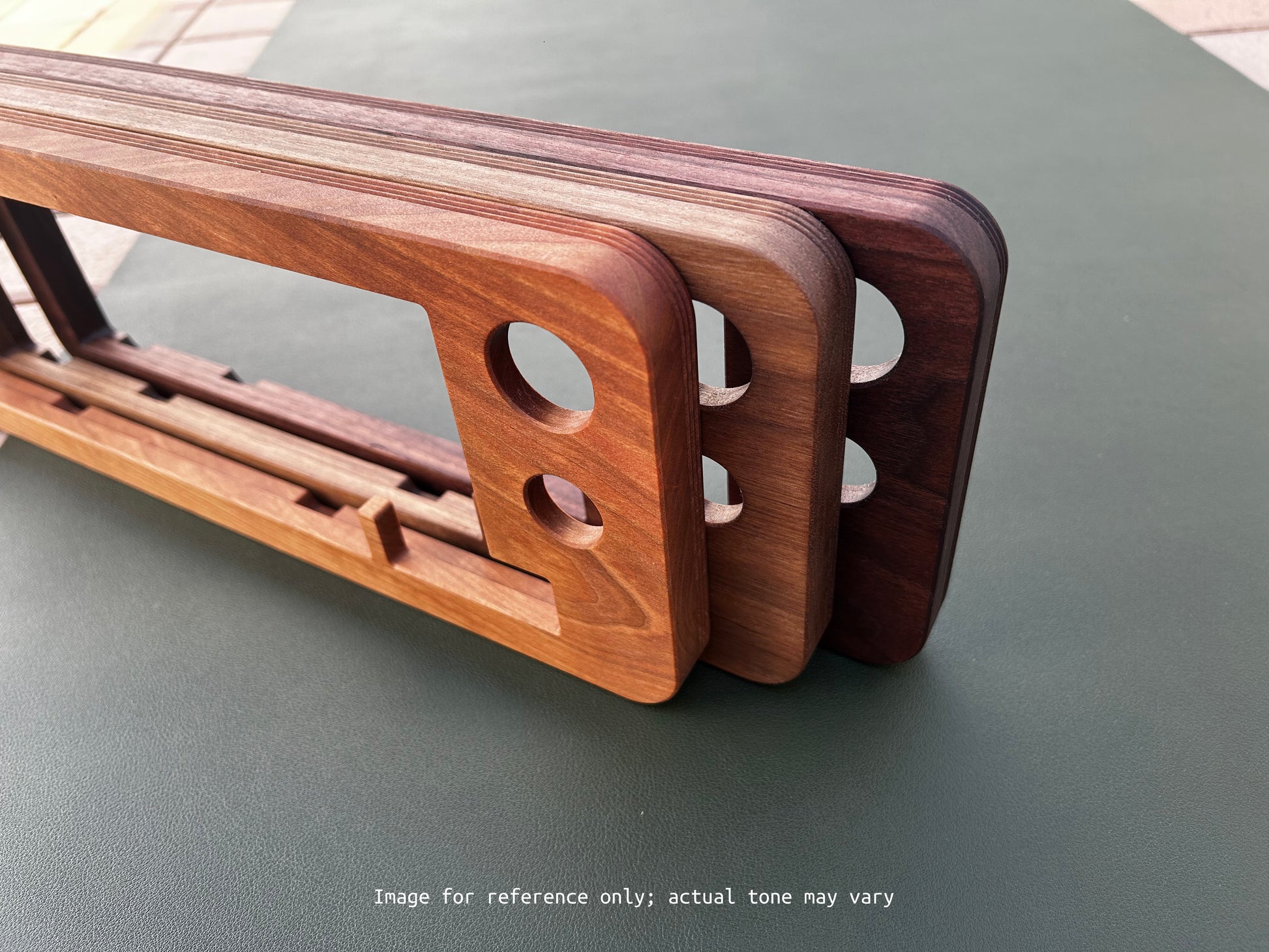

Walnut top case with a linseed oil finish
Birch bottom case with a coat of acrylic

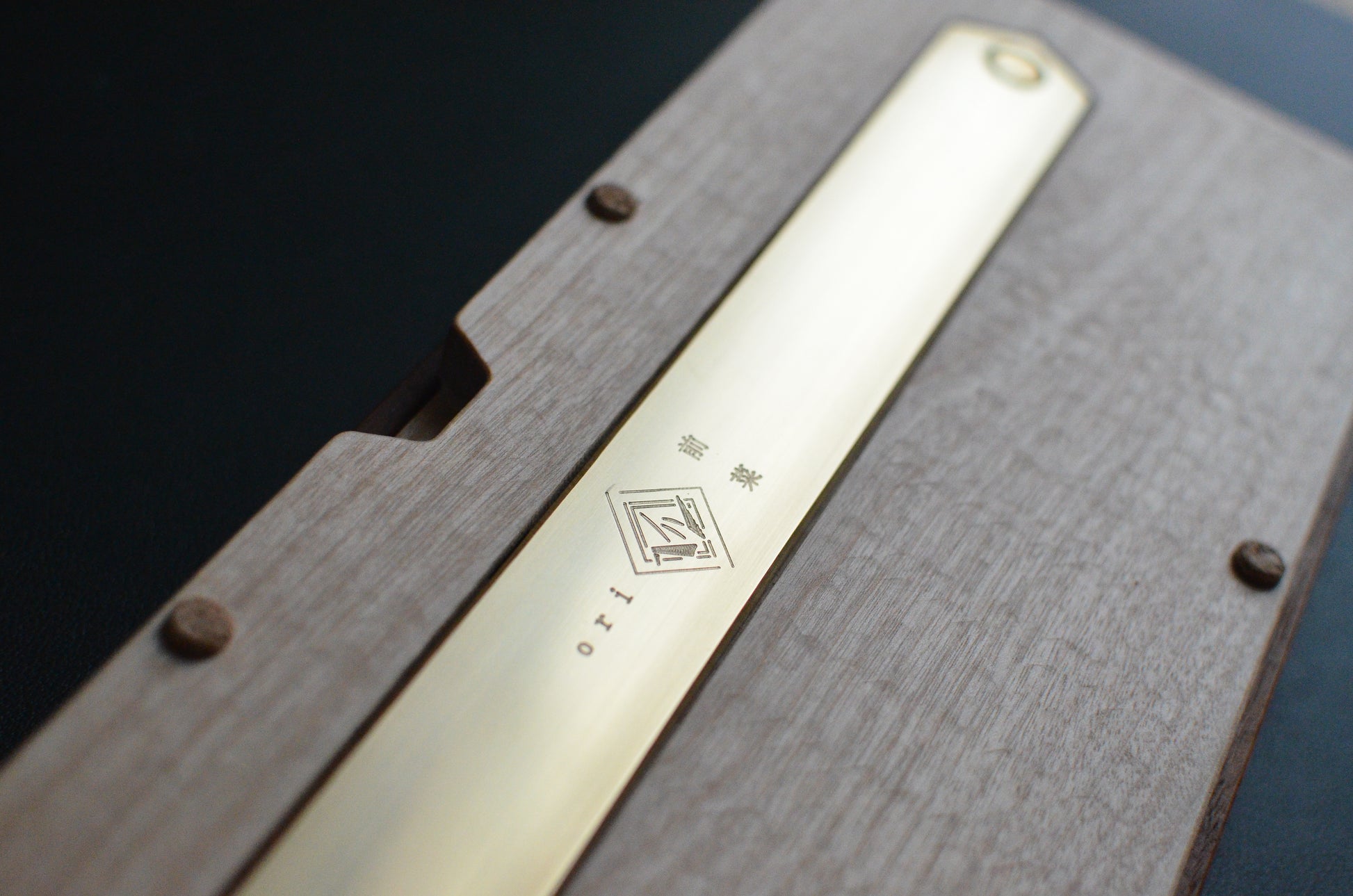

Brass weight with a brushed finish

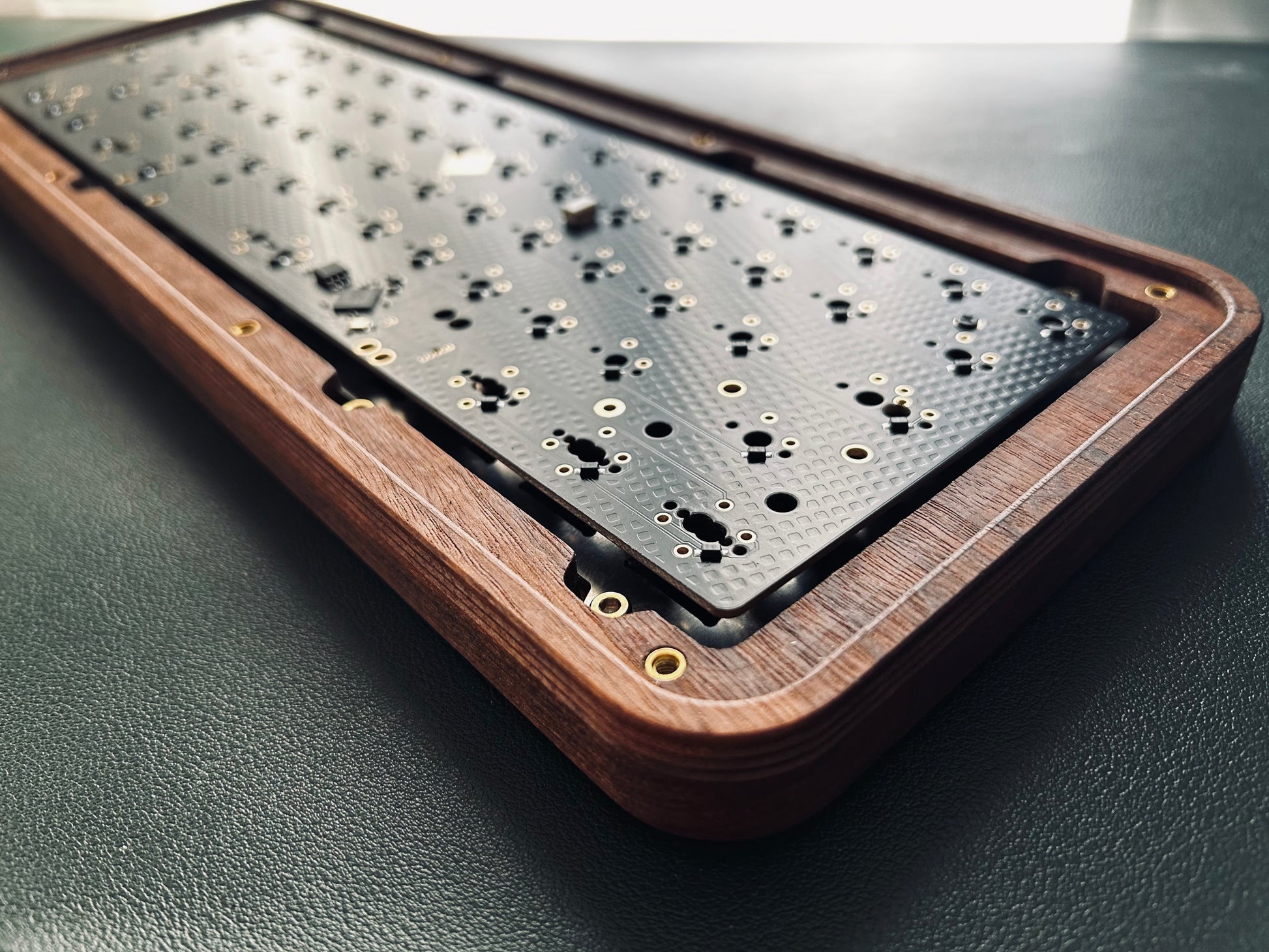

Plate available in aluminum or POM

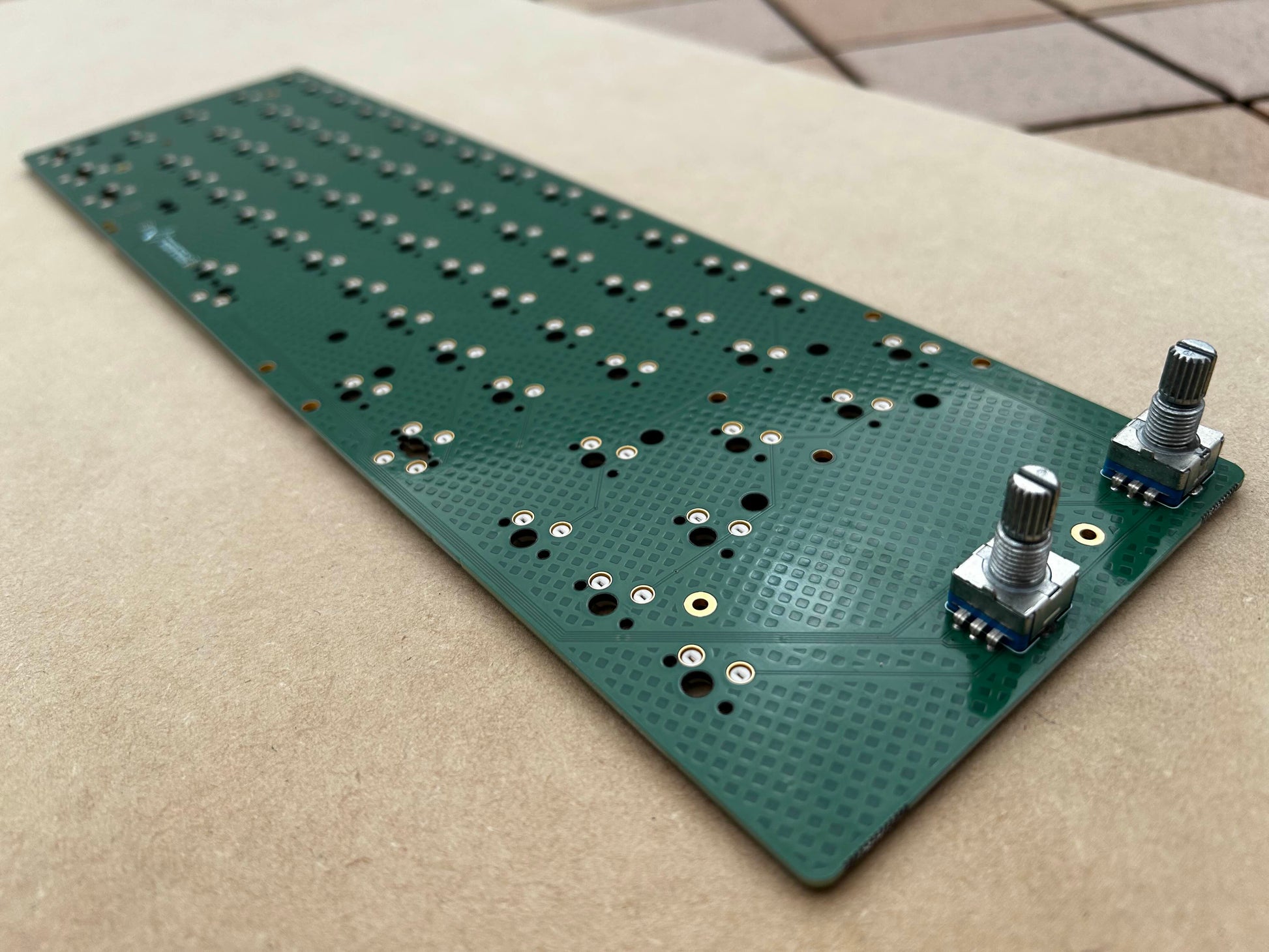

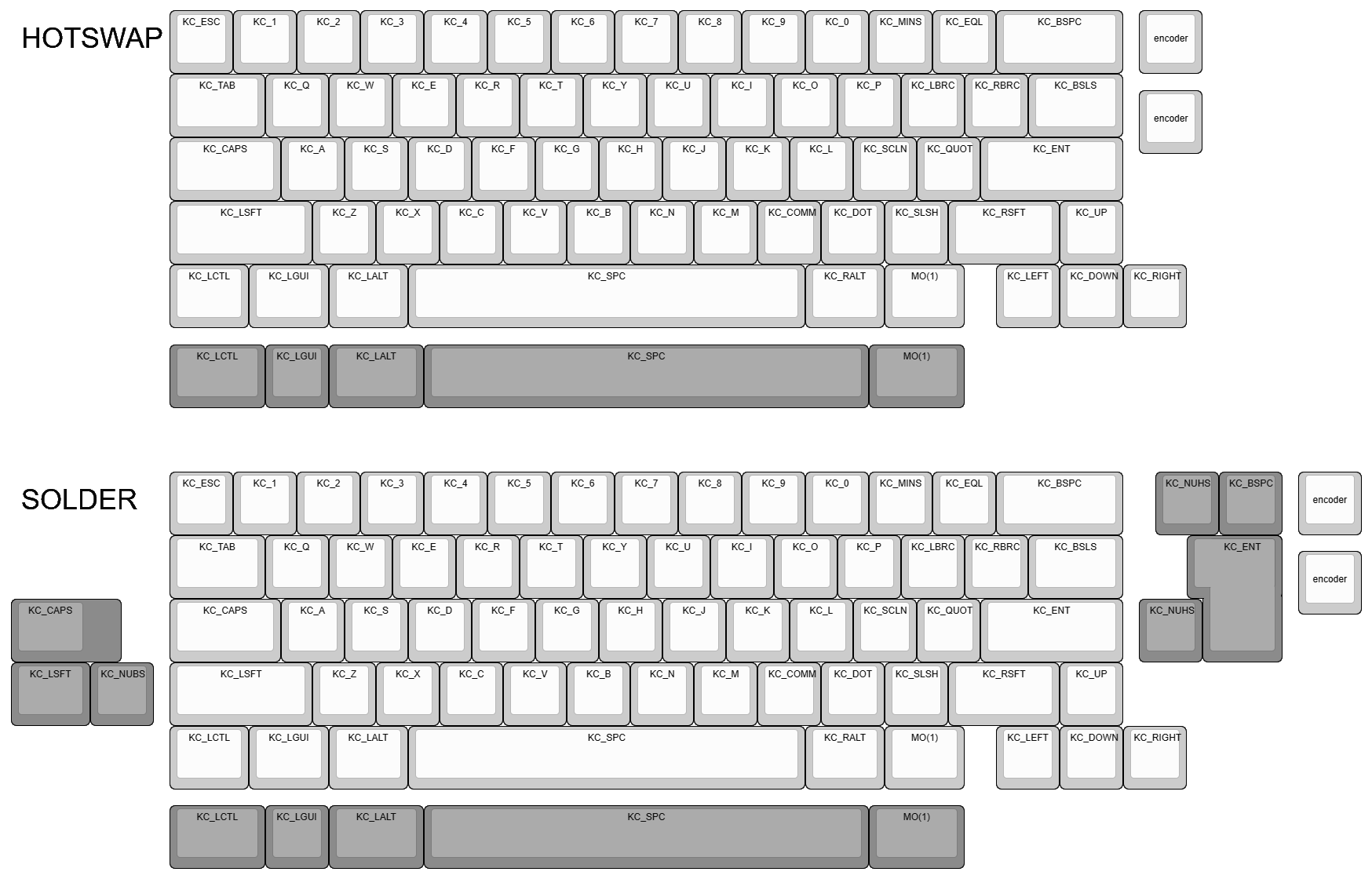

PCB available in multilayout soldered or ANSI hotswap, configurable with QMK or Vial out-the-box
PCB mounted stabilizers, 5 pin MX switches
*switches/stabilizers/keycaps not included*
ZENSAI i5v90
designed & manufactured by shoonie
PACKAGE INCLUDES:
Walnut top case
Birch bottom case
Brass weight
Chosen plate
Chosen PCB with rotary encoders & knobs attached
UDB S1 style JST to USB-C daughterboard & cable
4x M2 standoffs & philips head screws between plate and PCB
2x M3 large flathead brass screws & spring washers for the weight
18x M3 hex socket screws for the rest of the assembly
8x cork feet
Basic coiled USB-C cable
Alan key
